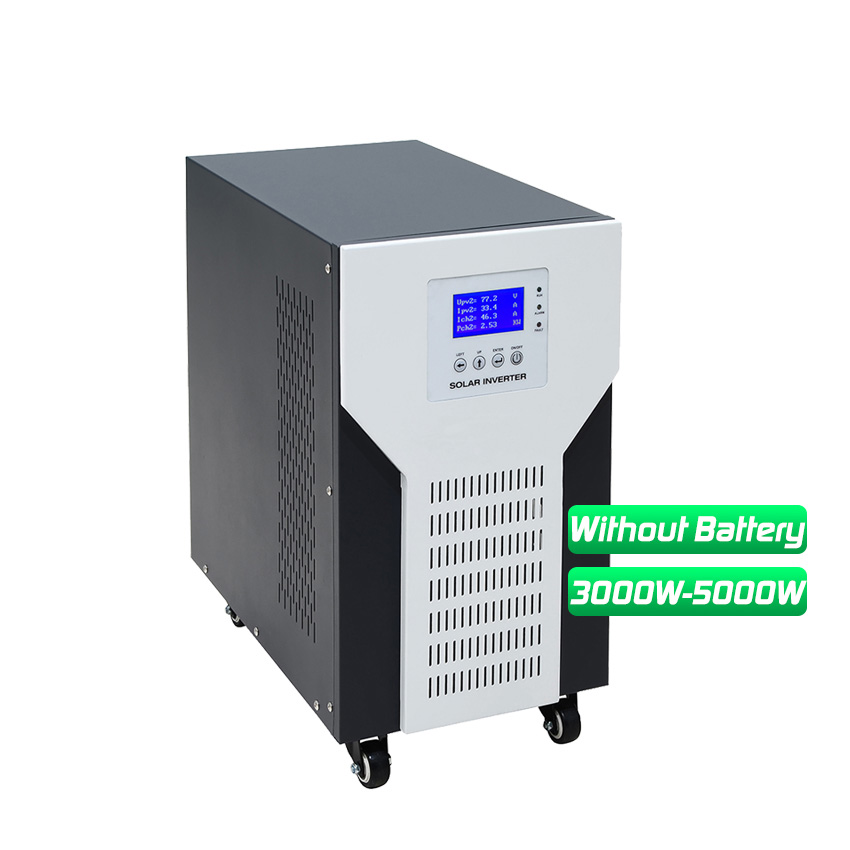

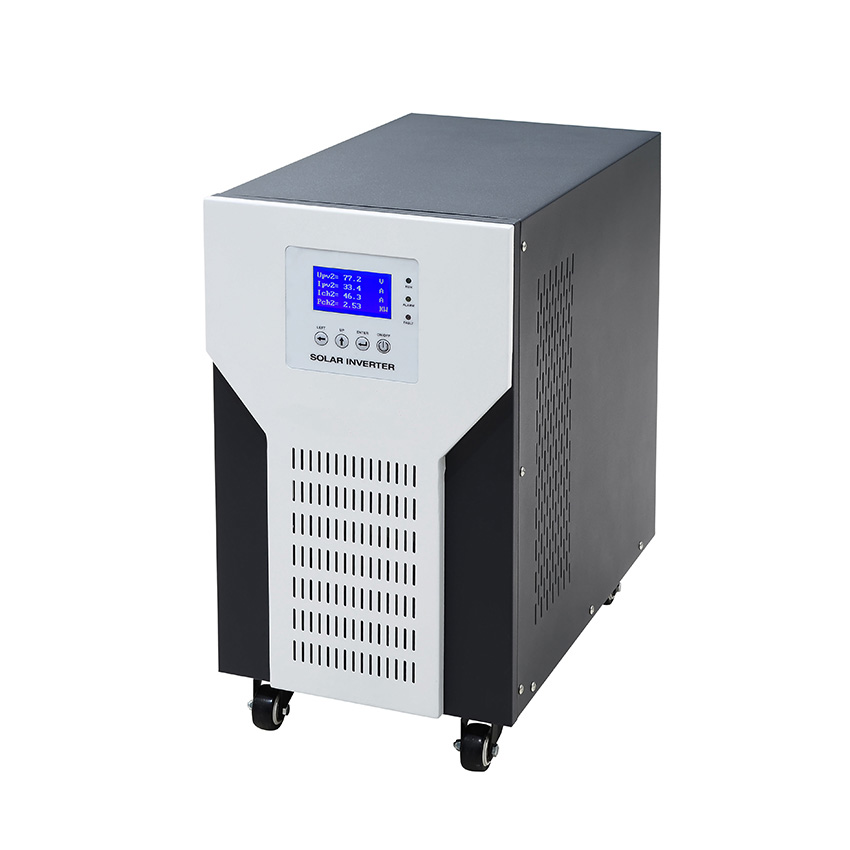

■ Solar Power Inverter Feature
1 Solar power inverter could be either with or without storage battery configuration, to reduce the cost of solar system；
2 Integrated intelligent energy management system, a variety of modes could be set；
3 Inverter has high transfer efficiency；
4 Ease city grid pressure, reduce electricity bills；
5 Dual MPPT input, precise algorithm, efficient use of PV energy；
6 Either diesel generator input or gasoline generator input is compatible with the system；
7 Isolated output of low frequency transformer, with strong impact resistance；
8 Large LCD screen, operating parameter could be displayed in real time；
9 Support multiple remote monitoring of communication software (RS485/Mobile APP（WIFI monitor or GPRS monitor）).
■ Solar Power Inverter Specification
| Specification | |||
| Model: ZRS | 30248 | 50248 | |
| PV Input |
Max input voltage（Voc） (At the lowest temperature) |
150V | |
| MPPT tracking range | 60V-120V | ||
|
Recommended operating voltage range |
60V-80V | ||
| MPPT route number | 2 | ||
| Max input power | 1960W/1960W | 3360W/3360W | |
|
Battery (Flexible configuration) |
Type of battery | Lead-acid battery / Lithium-ion battery(Need to customize) | |
| Rated voltage | 48V | ||
|
Max charging current (Can be set,Recommended 0.1C) |
70A(PV)/ 35A(Mains) | 120A(PV)/ 60A(Mains) | |
| Float voltage(Can be set) | 55.2V | ||
| Charge voltage(Can be set) | 56.8V | ||
| AC Input | Rated voltage | 220V/230V | |
| Input voltage range | 187V~264V | ||
| Rated input frequency | 45Hz~55Hz(50Hz)/55Hz~65Hz(60Hz) | ||
| Loss protection time | ≤2S | ||
| Reconnection time | 30S | ||
|
AC Output (PV/Battery mode) |
Rated output power | 3000W | 5000W |
| Rated output voltage | 220V/230V | ||
| Output voltage accuracy | ±2% | ||
| Rated output frequency | 50Hz/60Hz | ||
| Output frequency accuracy | ±1% | ||
|
AC Output (Mains mode) |
Rated output power | 3000W | 5000W |
| Output voltage | 187V~264V | ||
| Output frequency | 47~52Hz/57~62Hz | ||
|
Regular Parameter |

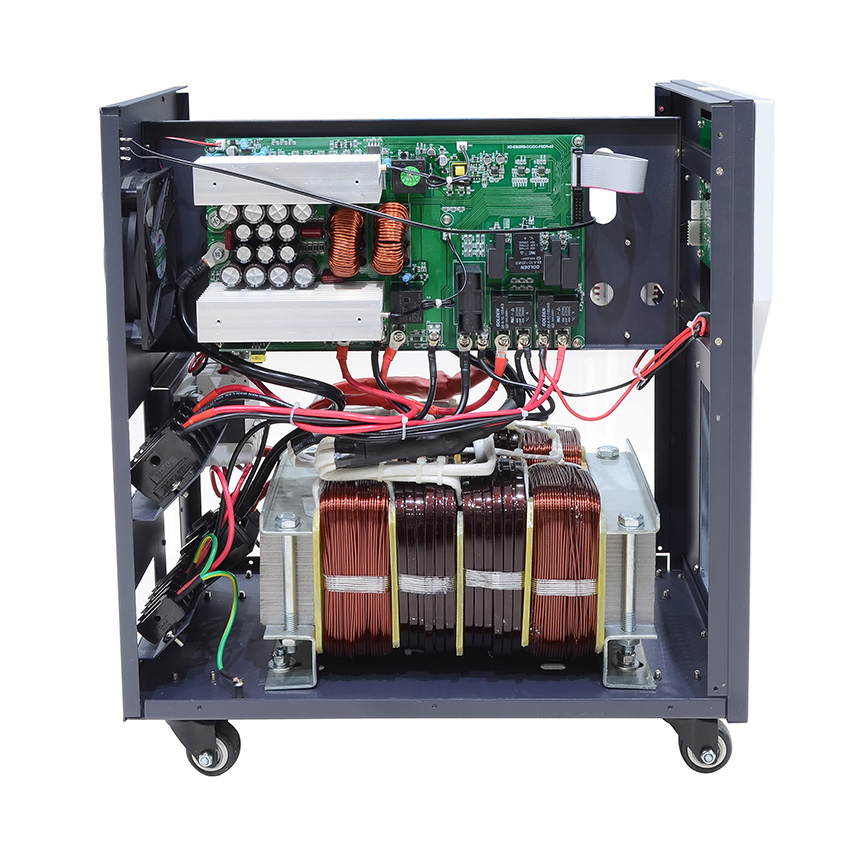

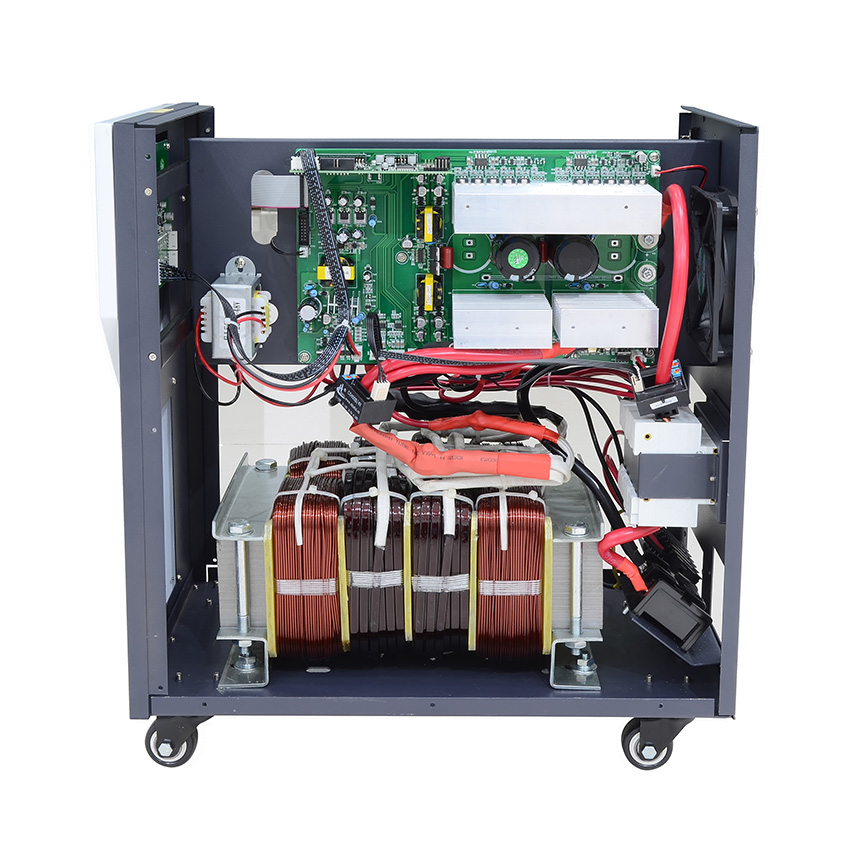

Topology | Transformer isolation | |
| Display | LCD+LED | ||
| Communication(Optional) | RS485/Mobile APP（WIFI monitor or GPRS monitor） | ||
| Operating temperature | -20℃~60℃（Derating above 45°C） | ||
| Storage temperature | -20℃~60℃ | ||
| Noise | ≤60dB | ||
| Relative humidity | 20%~95%(No condensation) | ||
| Highest altitude | 2000m（More than derating） | ||
| Machine dimension(L*W*Hmm) | 467*280*508 | ||
| Package dimension(L*W*Hmm) | 530*340*635 | ||
| N.W(kg) | 40 | 49 | |
| G.W(kg) | 47 | 56 | |
| Installation Method | Tower | ||
| Note: All specifications are subject to charge without prior notice | |||
