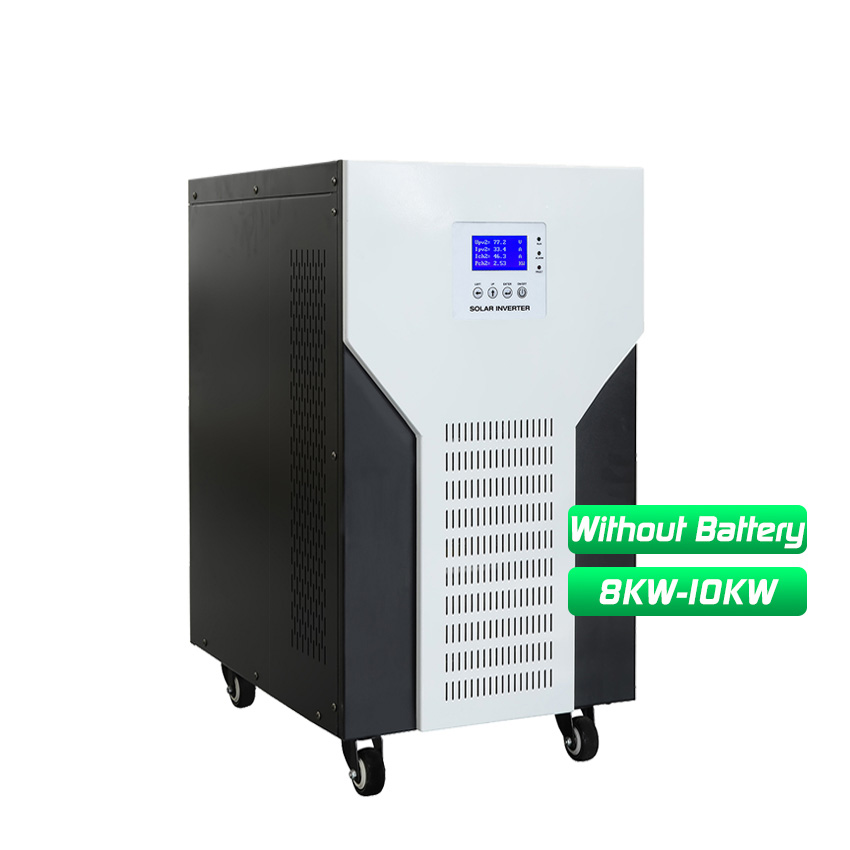

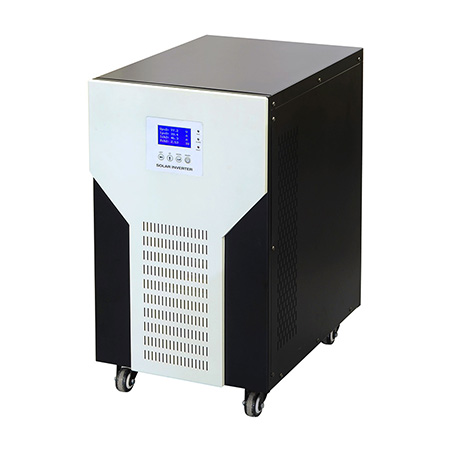

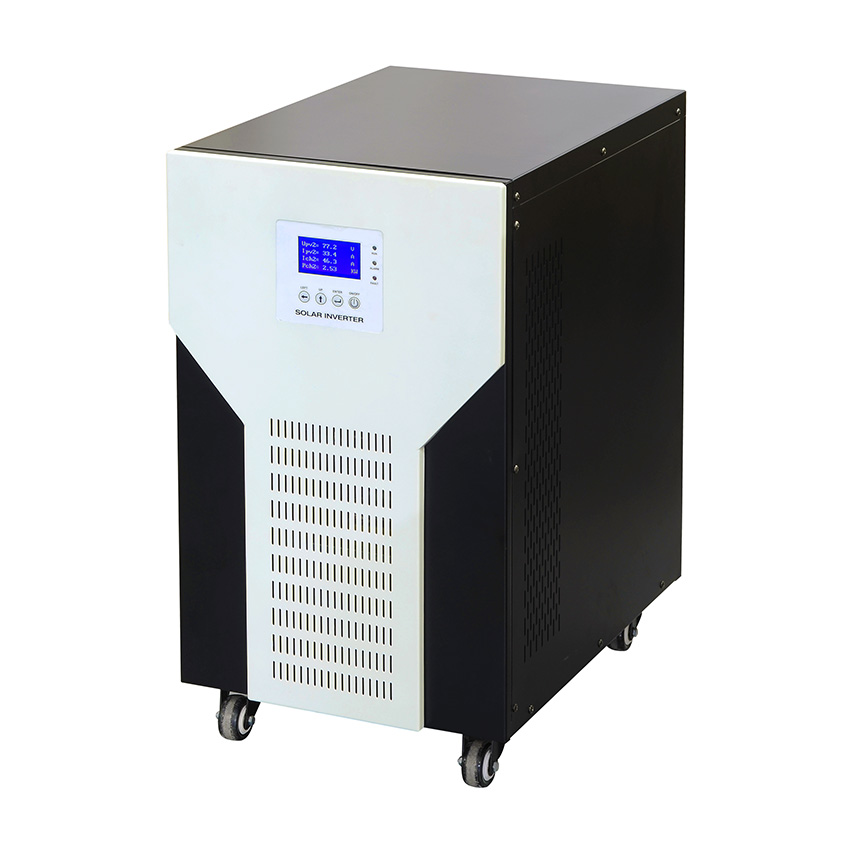

■ Solar Inverter Without Battery Feature
1 Hybrid off grid solar inverter could be either with or without storage battery configuration, to reduce the cost of solar system；
2 Integrated intelligent energy management system, a variety of modes could be set；
3 High transfer efficiency；
4 Ease city grid pressure, reduce electricity bills；
5 Dual MPPT input, precise algorithm, efficient use of PV energy；
6 Either diesel generator input or gasoline generator input is compatible with the system；

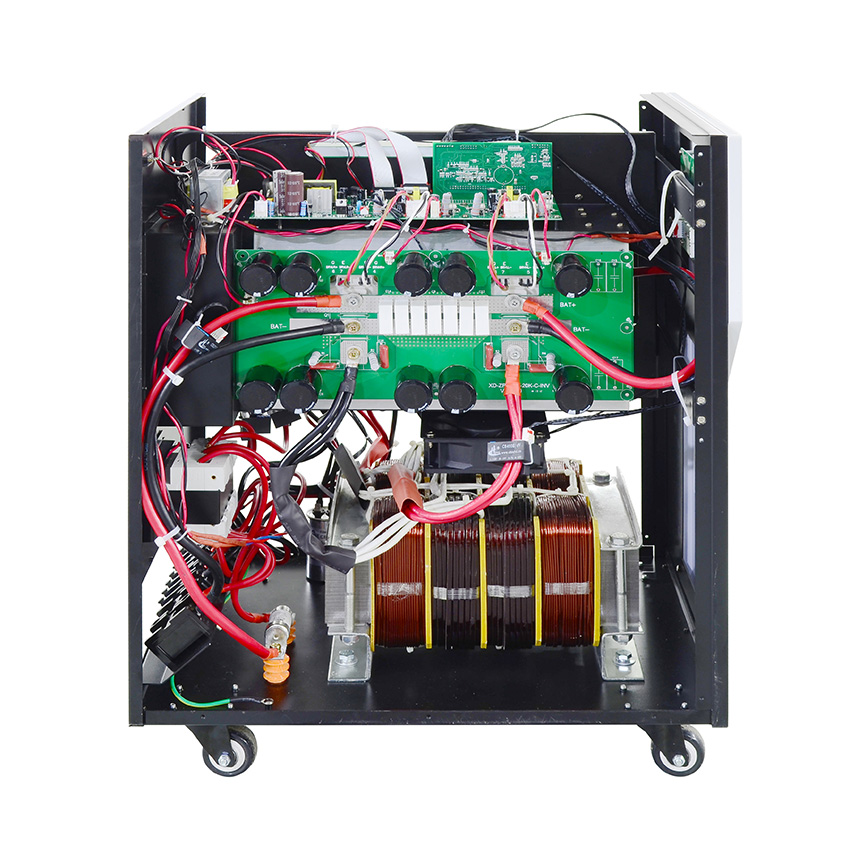

7 Isolated output of low frequency transformer, with strong impact resistance；
8 Large LCD screen, operating parameter could be displayed in real time；
9 Support multiple remote monitoring of communication software (RS485/Mobile APP（WIFI monitor or GPRS monitor）).
■ Solar Inverter Without Battery Specification
| Specification | |||
| Model: ZRS | 80296 | 10396 | |
| PV Input |
Max input voltage（Voc）
(At the lowest temperature)
|
300V | |
| MPPT tracking range | 120V-240V | ||
|
Recommended operating
voltage range
|
120V-160V | ||
| MPPT route number | 2 | ||
| Max input power | 5000W/5000W | 6150W/6150W | |
|
Battery
(Flexible configuration)
|
Type of battery | Lead-acid battery / Lithium-ion battery(Need to customize) | |
| Rated voltage | 96V | ||
|
Max charging current
(Can be set,Recommended 0.1C)
|
100A（PV）/ 40A（Mains） | 110A（PV）/ 60A（Mains) | |
| Float voltage(Can be set) | 110.4V | ||
| Charge voltage(Can be set) | 113.6V | ||
| AC Input | Rated voltage | 220V/230V | |
| Input voltage range | 187V~264V | ||
| Rated input frequency | 45Hz~55Hz(50Hz)/55Hz~65Hz(60Hz) | ||
| Loss protection time | ≤2S | ||
| Reconnection time | 30S | ||
|
AC Output
(PV/Battery mode)
|
Rated output power | 8KW | 10KW |
| Rated output voltage | 220V/230V | ||
| Output voltage accuracy | ±2% | ||
| Rated output frequency | 50Hz/60Hz | ||
| Output frequency accuracy | ±1% | ||
|
AC Output
(Mains mode)
|
Rated output power | 8KW | 10KW |
| Output voltage | 187V~264V | ||
| Output frequency | 47~52Hz/57~62Hz | ||
|
Regular
Specification
|
Topology | Transformer isolation | |
| Display | LCD+LED | ||
| Communication(Optional) | RS485/Mobile APP（WIFI monitor or GPRS monitor） | ||
| Operating temperature | -20℃~60℃（Derating above 45°C） | ||
| Storage temperature | -20℃~60℃ | ||
| Noise | ≤60dB | ||
| Relative humidity | 20%~95%(No condensation) | ||
| Highest altitude | 2000m（More than derating） | ||
| Machine dimension(L*W*Hmm) | 550*380*675 | ||
| Package dimension(L*W*Hmm) | 610*440*800 | ||
| N.W(kg) | 70 | 75 | |
| G.W(kg) | 80 | 85 | |
| Installation Method | Tower | ||
| Note: All specifications are subject to charge without prior notice | |||
