■ On Off Grid Hybrid Inverter Feature
1 Integrated intelligent energy management system, a variety of modes can be set；
2 Hybrid on off grid inverter cut peaks and fill valleys to reduce grid pressure and maximize profits；
3 Dual MPPT input, precise algorithm, efficient use of PV energy；
4 Supports multiple parallel operations for user expansion；
5 3-stage/2-stage charging technology to protect battery life；
6 Two-way energy storage design, PV, mains can charge the battery；
7 Support multiple remote monitoring of communication software (RS232RS485Mobile APPSNMPGSM).
■ On Off Grid Hybrid Inverter Specification
| Parameters | |||
| Model: ES | 80296 | 10396 | |
| PV Input |
Max input voltage(Voc)
(At the lowest temperature)
|
300V | |
| MPPT tracking range | 120V-240V | ||
| Recommended operating voltage range | 120V-160V | ||
| MPPT route number | 2 | ||
| Max input power | 5000W/5000W | 6150W/6150W | |
| Battery | Type of battery | Lead-acid battery / Lithium-ion battery | |
| Rated voltage | 96V | ||
|
Max charging current
(Can be set,Recommended 0.1C)
|
100A（PV）/ 40A（Mains） | 110A（PV）/ 60A（Mains) | |
| Float voltage(Can be set) | 110.4V | ||
| Charge voltage(Can be set) | 113.6V | ||
| Charging method | 3-stage/2-stage | ||
| AC Input | Rated voltage | 220V/230V | |
| Input voltage range | 187V~264V | ||
| Rated input frequency | 45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz) | ||
| Islanding Protection | ≤2S | ||
| Reconnection time | 30S | ||
|
AC output
(off grid mode)
|
Rated output power | 8KW | 10KW |
| Rated output voltage | 220V/230V | ||
| Output voltage accuracy | ±2% | ||
| Rated output frequency | 50Hz/60Hz | ||
| Output frequency accuracy | ±1% | ||
|
AC output
(on grid mode)
|
Rated output power | 8KW | 10KW |
| Rated output current | 36.4A | 45.5A | |
| Output voltage | 187V~264V | ||
| Output frequency | 47~52Hz/57~62Hz | ||
| Power Factor | >0.99(Rated power) | ||
| Protection | Output short circuit | Yes | |
| Over load | Yes | ||
| Over-voltage/under-voltage | Yes | ||
| Over-frequency/under-frequency | Yes | ||
| Over temperature | Yes | ||
| Island protection | Yes | ||

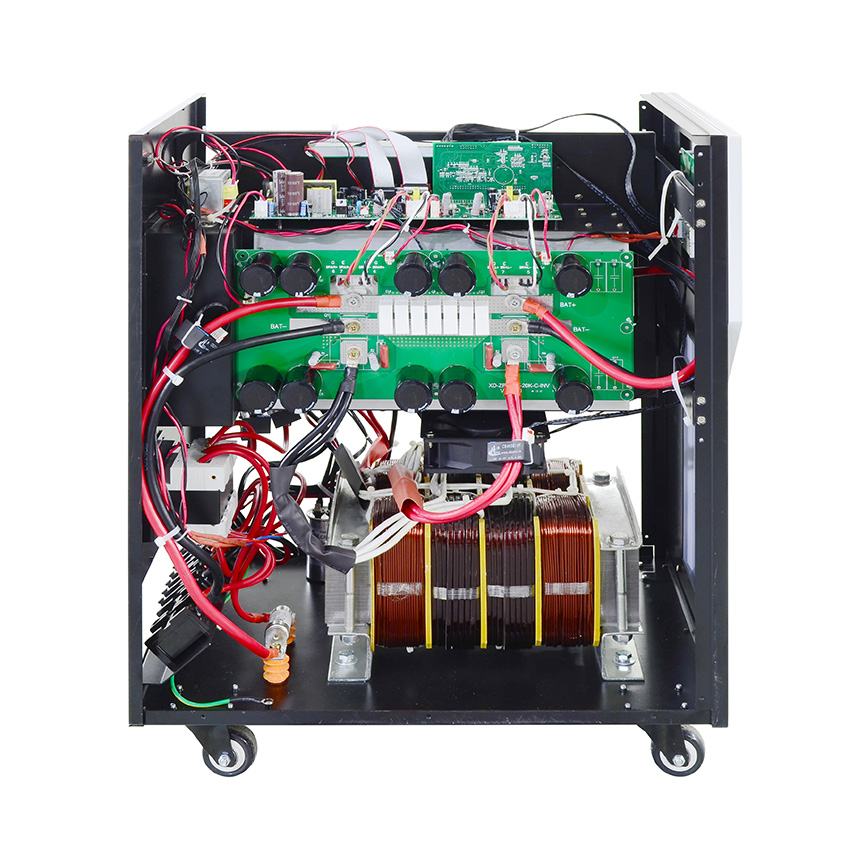

| Regular Parameter | Topology | Transformer isolation | |
| Display | LCD+LED | ||
| Communication(Optional) | RS485/APP（WIFI monitoring or GPRS monitoring） | ||
| Operating temperature | -10℃~60℃（Derating above 45°C） | ||
| Storage temperature | -20℃~60℃ | ||
| Noise | ≤60dB | ||
| Relative humidity | 0%~95%(No condensation) | ||
| Highest altitude | 2000m（More than derating） | ||
| Machine dimension(L*W*Hmm) | 550*380*675 | ||
| Package dimension(L*W*Hmm) | 610*440*800 | ||
| N.W(kg) | 70 | 75 | |
| G.W(kg) | 80 | 85 | |
| Installation Method | Tower | ||
| Note: All specifications are subject to charge without prior notice | |||
