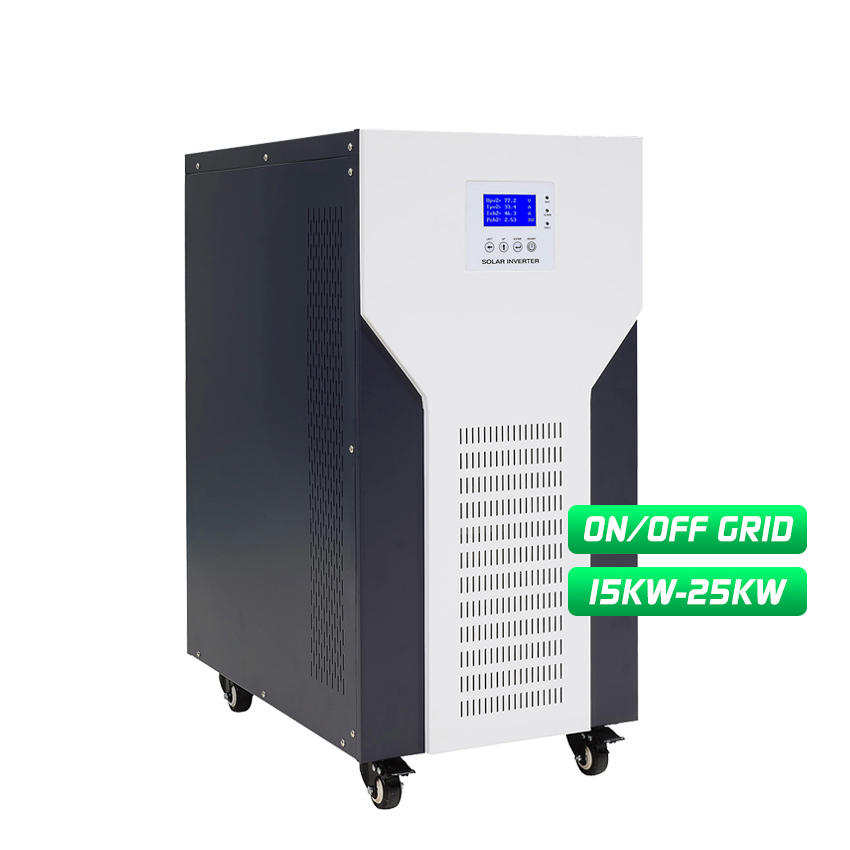

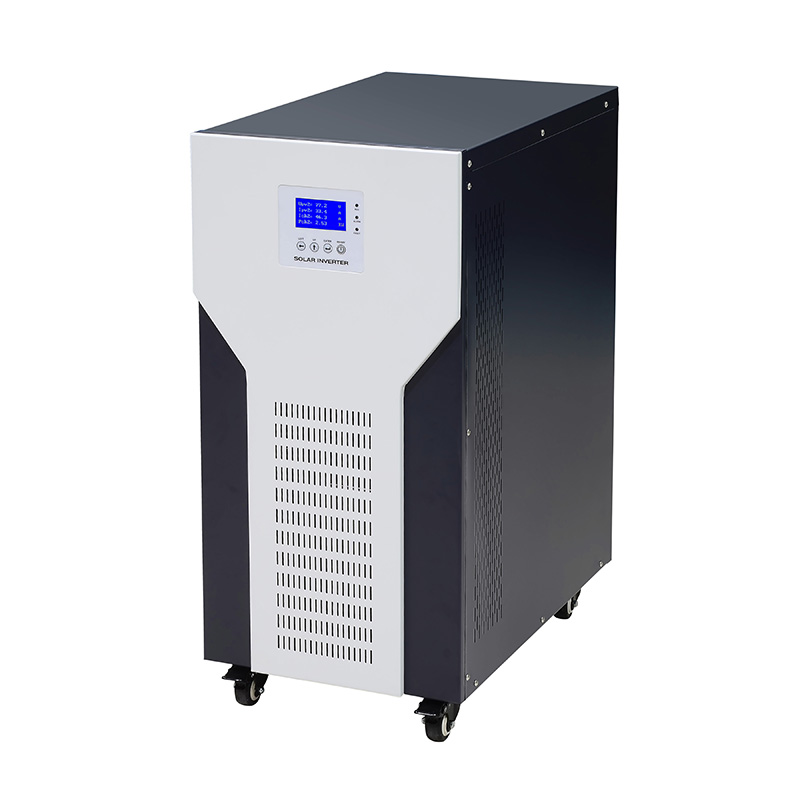

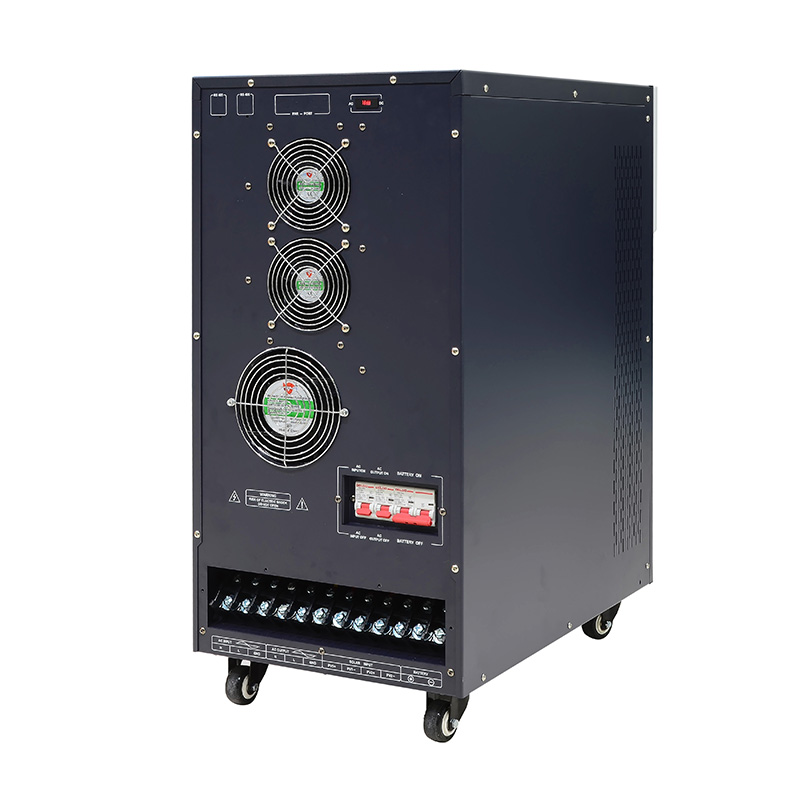

■ Hybrid Solar Grid Tie Inverter Feature
1 Integrated intelligent energy management system, a variety of modes can be set；
2 Hybrid solar grid tie inverter cut peaks and fill valleys to reduce grid pressure and maximize profits；
3 Dual MPPT input, precise algorithm, efficient use of PV energy；
4 Supports multiple parallel operations for user expansion；
5 3-stage/2-stage charging technology to protect battery life；
6 Two-way energy storage design, PV, mains can charge the battery；
7 Support multiple remote monitoring of communication software (RS232RS485Mobile APPSNMPGSM).
■ Hybrid Solar Grid Tie Inverter Specification
| Parameters | ||||
| Model: ES | 153192 | 203192 | 253240 | |
| PV Input |
Max input voltage(Voc)
(At the lowest temperature)
|
450V | 500V | |
| MPPT tracking range | 240V-360V | 300V-400V | ||
| Recommended operating voltage range | 240V-320V | 300V-380V | ||
| MPPT route number | 2 | |||
| Max input power | 8.8KW/8.8KW | 11.2KW/11.2KW | 14KW/14KW | |
| Battery | Type of battery | Lead-acid battery / Lithium-ion battery | ||
| Rated voltage | 192V | 192V | 240V | |
|
Max charging current
(Can be set,Recommended 0.1C)
|
80A（PV）/ 40A（Mains） | 110A（PV）/ 60A（Mains） | 110A（PV）/ 60A（Mains） | |
| Float voltage(Can be set) | 220.8V | 276V | ||
| Charge voltage(Can be set) | 227.2V | 284V | ||
| Charging method | 3-stage/2-stage | |||
| AC Input | Rated voltage | 220V/230V | ||
| Input voltage range | 187V~264V | |||
| Rated input frequency | 45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz) | |||
| Islanding Protection | ≤2S | |||
| Reconnection time | 30S | |||
|
AC output
(off grid mode)
|
Rated output power | 15KW | 20KW | 25KW |
| Rated output voltage | 220V/230V | |||
| Output voltage accuracy | ±2% | |||
| Rated output frequency | 50Hz/60Hz | |||
| Output frequency accuracy | ±1% | |||
|
AC output
(on grid mode)
|

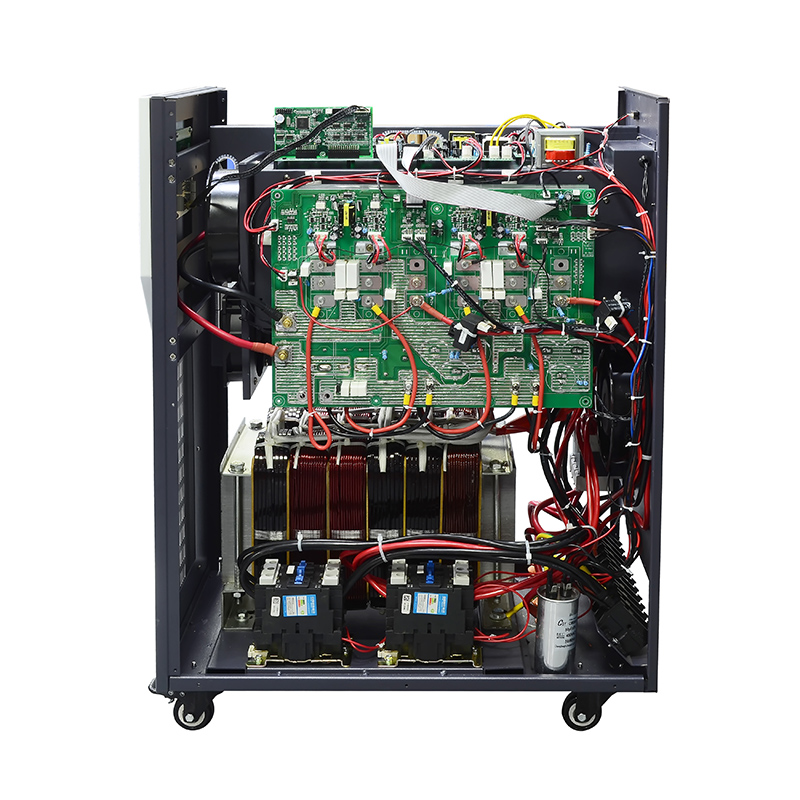

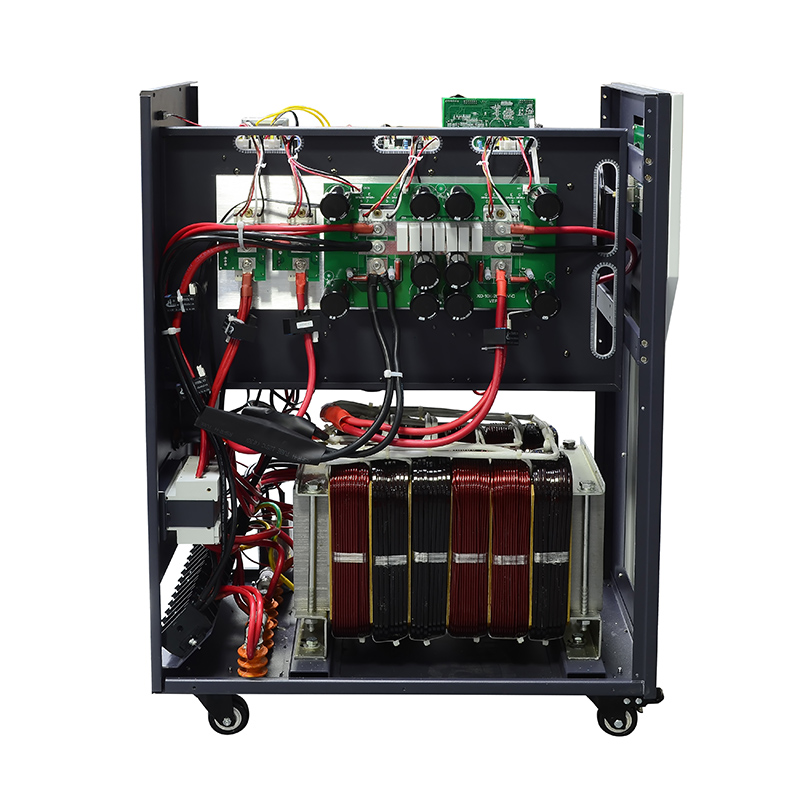

Rated output power | 15KW | 20KW | 25KW |
| Rated output current | 68.2A | 90.1A | 113.6A | |
| Output voltage | 187V~264V | |||
| Output frequency | 47~52Hz/57~62Hz | |||
| Power Factor | >0.99(Rated power) | |||
| Protection | Output short circuit | Yes | ||
| Over load | Yes | |||
| Over-voltage/under-voltage | Yes | |||
| Over-frequency/under-frequency | Yes | |||
| Over temperature | Yes | |||
| Island protection | Yes | |||
| Regular Parameter | Topology | Transformer isolation | ||
| Display | LCD+LED | |||
| Communication(Optional) | RS485/APP（WIFI monitoring or GPRS monitoring） | |||
| Operating temperature | -10℃~60℃（Derating above 45°C） | |||
| Storage temperature | -20℃~60℃ | |||
| Noise | ≤60dB | |||
| Relative humidity | 0%~95%(No condensation) | |||
| Highest altitude | 2000m（More than derating） | |||
| Machine dimension(L*W*Hmm) | 620*380*825 | |||
| Package dimension(L*W*Hmm) | 680*440*950 | |||
| N.W(kg) | 128 | 134 | 140 | |
| G.W(kg) | 140 | 146 | 152 | |
| Installation Method | Tower | |||
| Note: All specifications are subject to charge without prior notice | ||||
