■ Pure Sine Wave Inverter Charger Feature

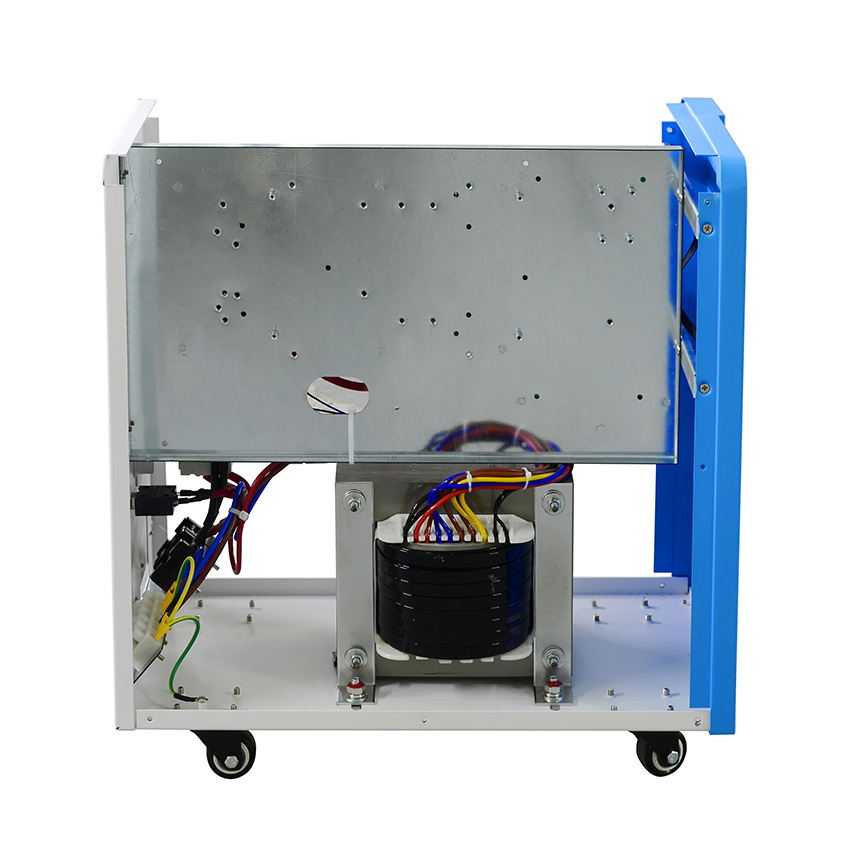

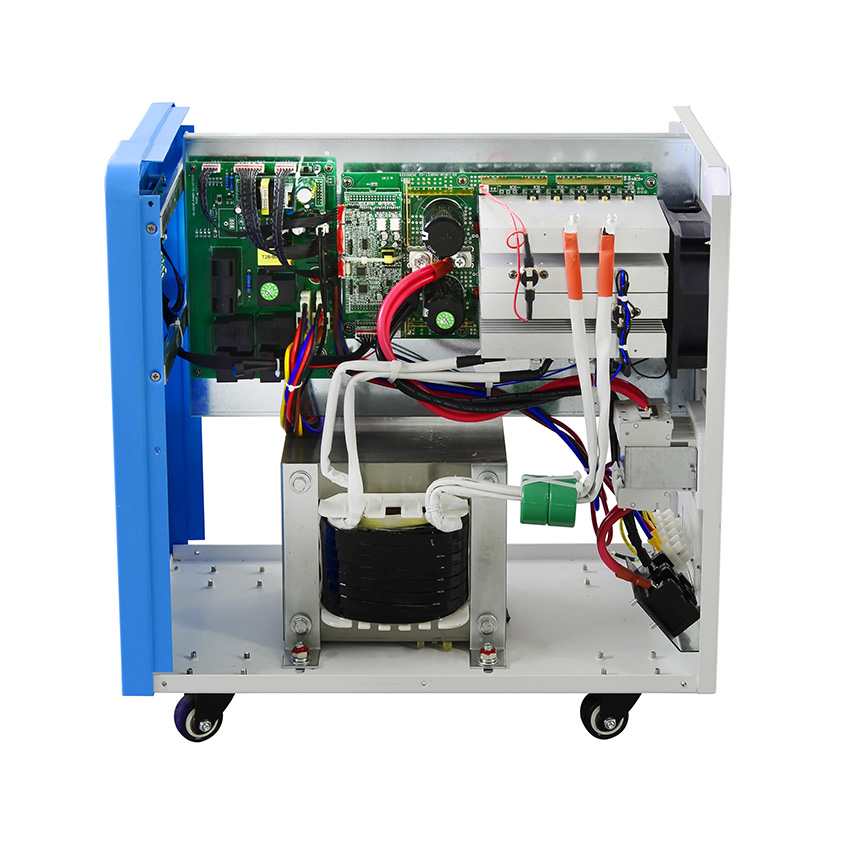

1. Adopt EI transformer, strong impact resistance ability;
2. Inverter pure sine wave output, adapt all types of ac loads ;

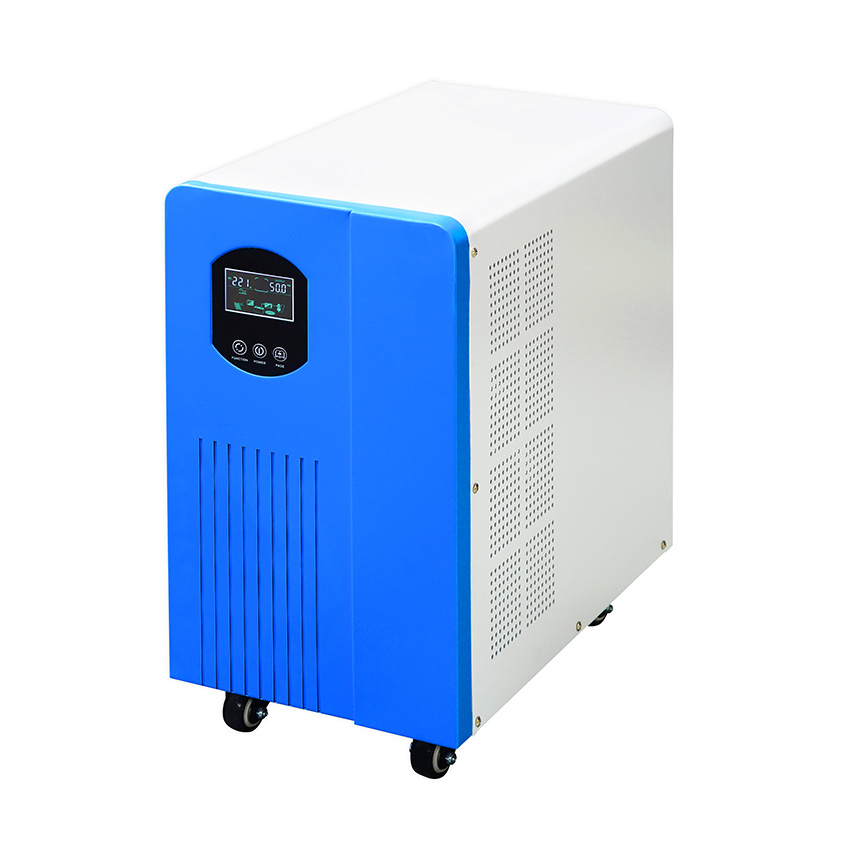

3. Intelligent LCD integrated display, real-time view of operating status and setting data;
4. AC charging current 0~20A adjustable, more flexible user battery capacity configuration;
5. Three types working modes (AC first / Battery first / Saving energy mode);
6. Adding fault code interrogate function, easy for real-time operating status monitoring；
7. Supports diesel or gasoline generator input, adapt any tough electricity occasions;
8. Protection against overload, overheat, short circuits, safety and reliable;
9. Inverter support RS485 communication port / mobile APP (optional).
■ Pure Sine Wave Inverter Charger Specification
| Specification | |||||

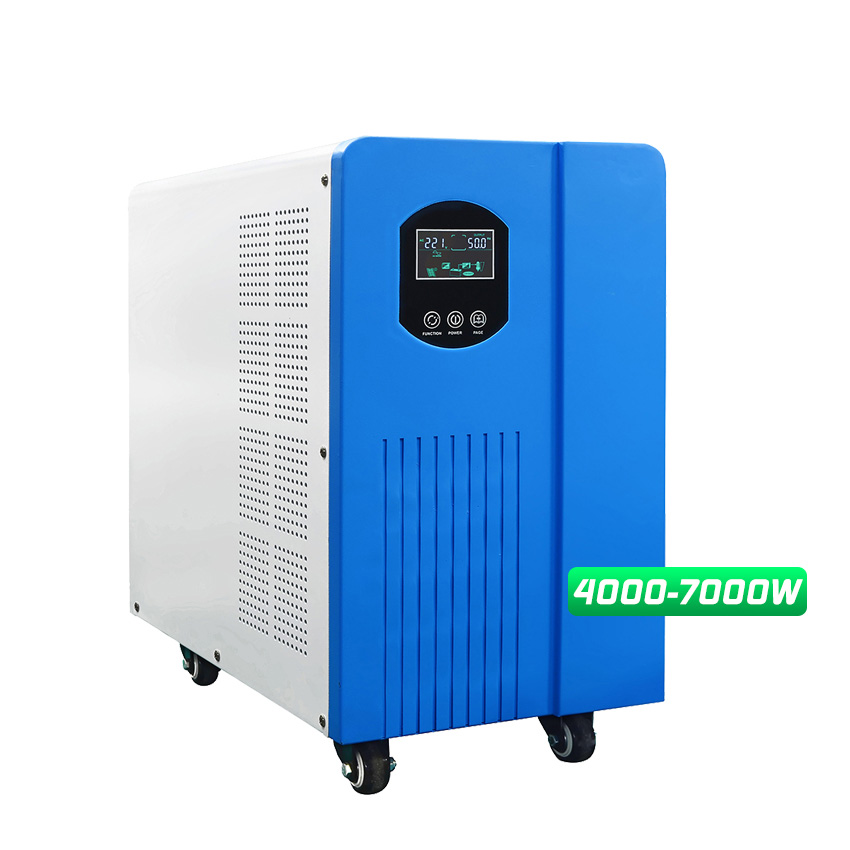

| Model WP | 40248/96 | 50248/96 | 60248/96 | 70248/96/192 | |
| Rated Power | 4000 Watt | 5000 Watt | 6000 Watt | 7000 Watt | |
| Peak Power（20ms) | 12000VA | 15000VA | 18000VA | 21000VA | |
| Start Motor | 3HP | 4HP | 4HP | 5HP | |
| Battery Voltage | 48/96VDC | 48/96VDC | 48/96VDC | 48/96/192VDC | |
| Size(L*W*Hmm) | 490*260*500 | ||||
| Packing Size(L*W*Hmm) | 550*320*560 | ||||
| N.W.(kg) | 45 | 48 | 50 | 54 | |
| G.W.(kg) | 49 | 52 | 54 | 58 | |
| Installation Method | Tower | ||||
| Parameter | |||||
| Input | DC Input Voltage Range | 10.5-15VDC（Single battery voltage） | |||
| AC Input Voltage Range |
73VAC~138VAC(110VAC） / 83VAC~148VAC（120VAC） / 145VAC~275VAC（220VAC） / 155VAC~285VAC（230VAC） / 165VAC~295VAC（ 240VAC） |
||||
| AC Input Frequency Range | 45Hz~55Hz（50Hz) / 55Hz~65Hz（60Hz) | ||||
| Max AC charging current | 0A~20A（Depending on the model，The maximum charging power is 1/4 of the rated power） | ||||
| AC charging method | Three-stage (constant current, constant voltage, floating charge) | ||||
| Output | Efficiency(Battery Mode) | ≥85% | |||
| Output Voltage(Battery Mode) | 110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2% | ||||
| Output Frequency(Battery Mode) | 50Hz±0.5 or 60Hz±0.5 | ||||
| Output Wave(Battery Mode) | Pure Sine Wave | ||||
| Efficiency(AC Mode) | >99% | ||||
| Output Voltage(AC Mode) | Follow input | ||||
| Output Frequency(AC Mode) | Tracking Automatically | ||||
|
Output waveform distortion(Battery Mode) |
≤3%（Linear load） | ||||
| No load loss(Battery Mode) | ≤2.5% rated power | ||||
| No load loss(AC Mode) | ≤2% rated power（ charger does not work in AC mode） | ||||
|
No load loss (Energy saving Mode) |
≤10W | ||||
| Battery Type | VRLA Battery | Charge Voltage :14.2V; Float Voltage:13.8V(Single battery voltage) | |||
| Customize battery |
Charging and discharging parameters of different types of batteries can be customized according to user requirements (charging and discharging parameters of different types of batteries can be set through the operation panel) |
||||
| Protection | Battery undervoltage alarm | Factory default: 11V（Single battery voltage） | |||
| Battery undervoltage protection | Factory default: 10.5V（Single battery voltage） | ||||
| Battery overvoltage alarm | Factory default: 15V（Single battery voltage） | ||||
| Battery overvoltage protection | Factory default: 17V（Single battery voltage） | ||||
| Battery overvoltage recovery voltage | Factory default: 14.5V（Single battery voltage） | ||||
| Overload power protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||||
| Inverter output short circuit protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||||
| Temperature protection | >90°C（Shut down output） | ||||
| Alarm | A | Normal working condition, buzzer has no alarm sound | |||
| B | Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection | ||||
| C | When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal | ||||
| Working Mode | Battery First/AC First/Saving Energy Mode | ||||
| Transfer Time | ≤4ms | ||||
| Display | LCD | ||||

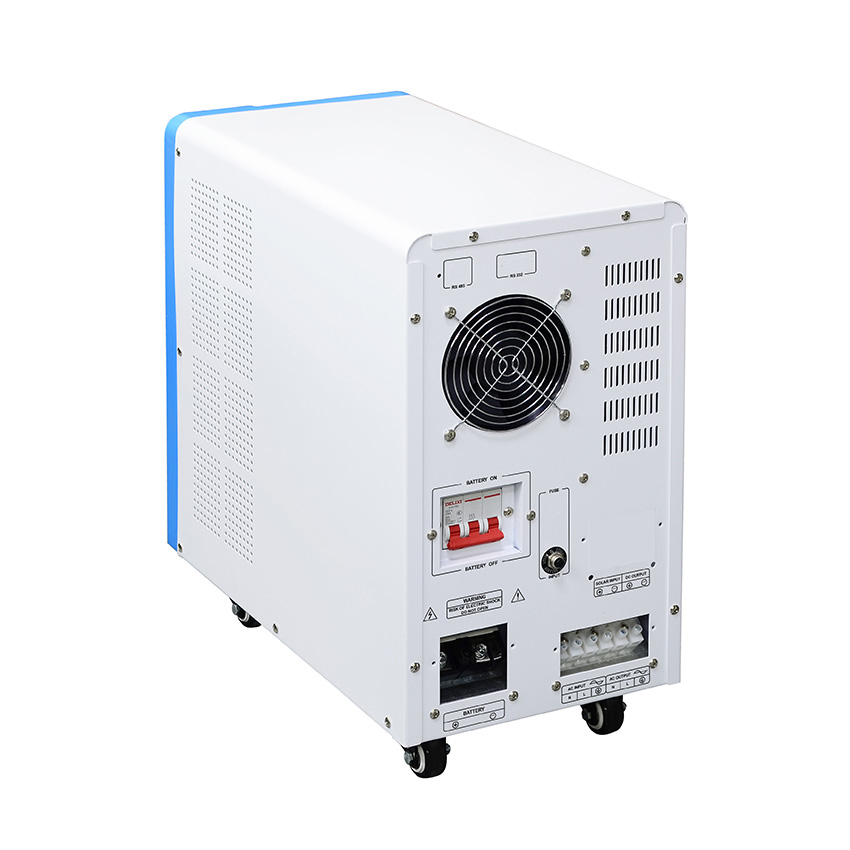

| Thermal method | Cooling fan in intelligent control | ||||
| Communication(Optional) | RS485/APP（WIFI monitoring or GPRS monitoring） | ||||
| Environment | Operating temperature | -10℃~40℃ | |||
| Storage temperature | -15℃~60℃ | ||||
| Noise | ≤55dB | ||||
| Elevation | 2000m（More than derating） | ||||
| Humidity | 0%~95% ,No condensation | ||||
| Note: All specifications are subject to charge without prior notice | |||||
