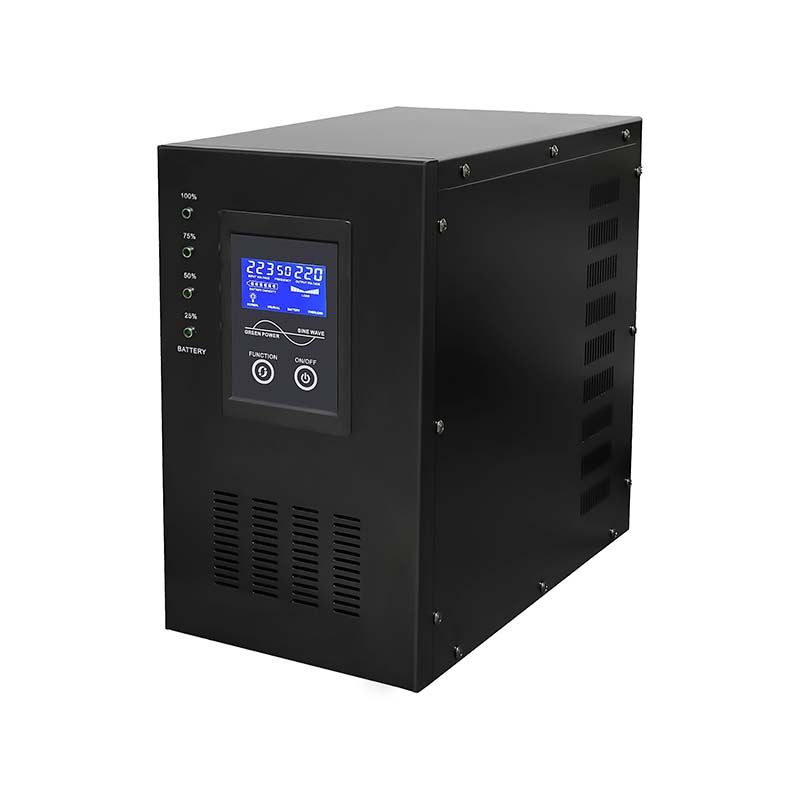

1 Hybrid solar power inverter built-in PWM charge controller optional.
2 Pure sine wave output.
3 Wide AC voltage input range, AVR output.

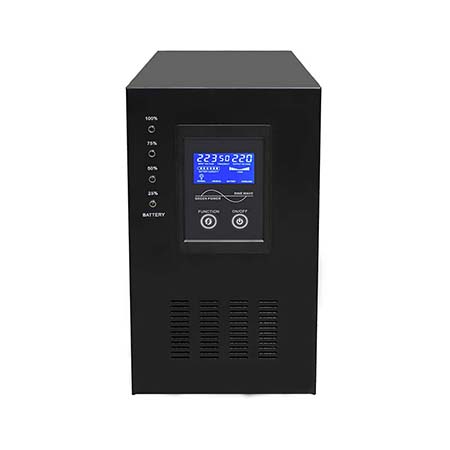

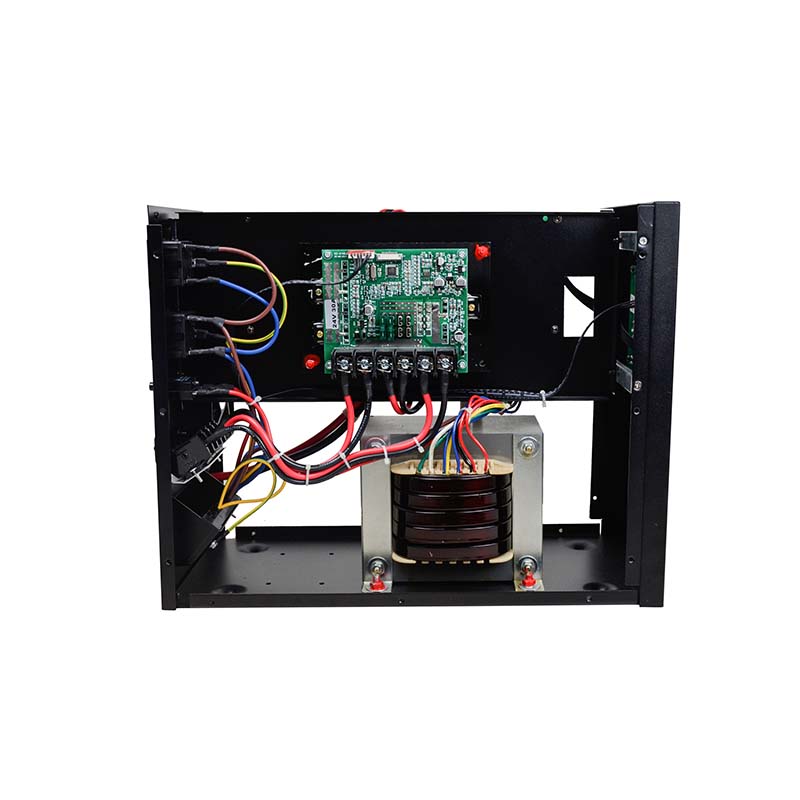

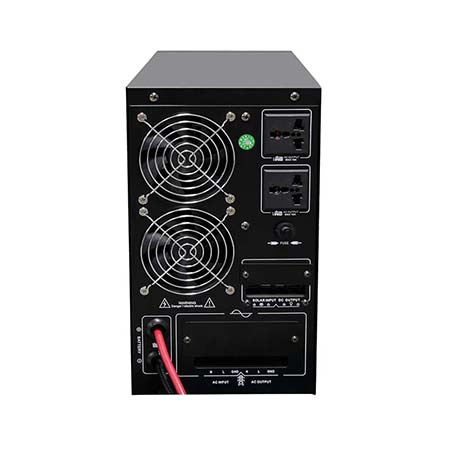

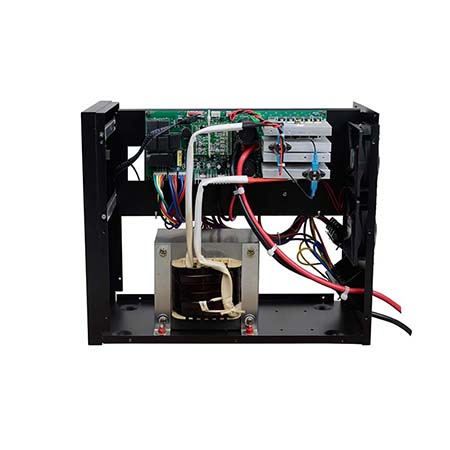

4 Adopt traditional EI transformer , stable performance.

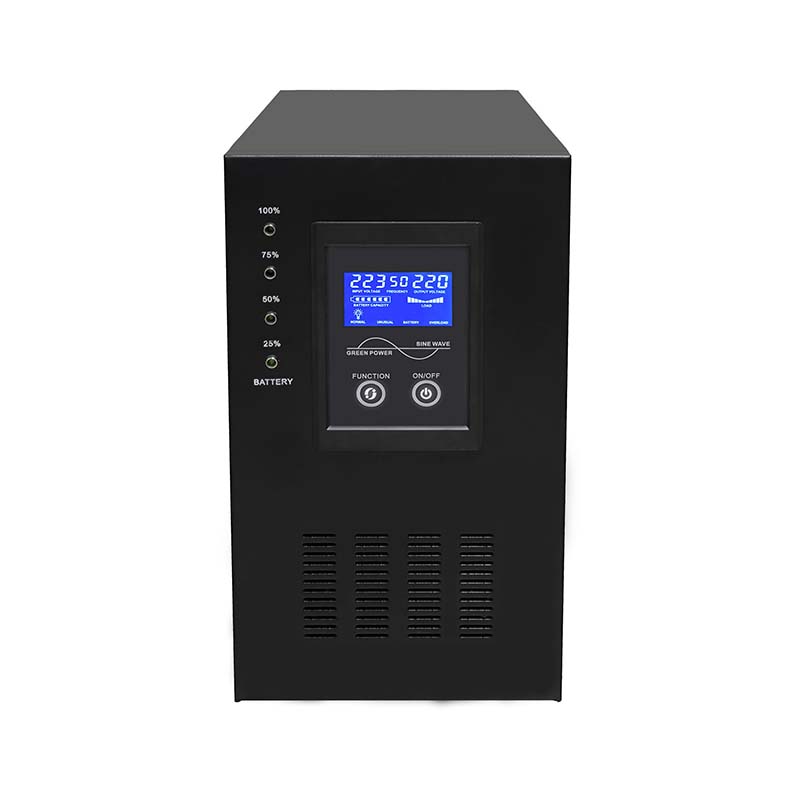

5 LCD/LED&LCD real-time display, concise and straightforward.
6 Working modes: AC first or battery first optional, intelligent charging.

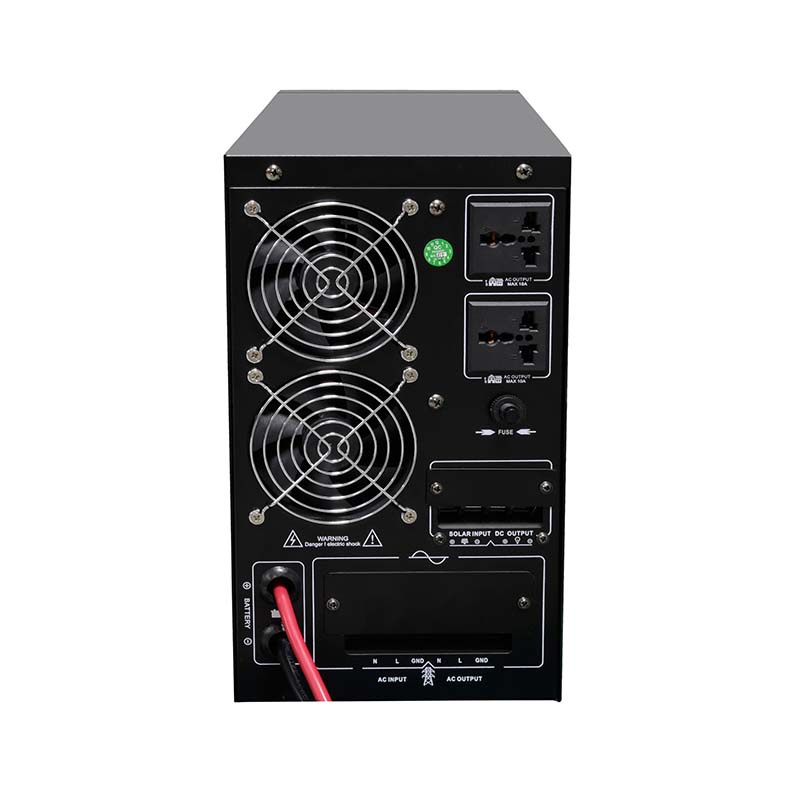

7 RS232 communication port optional.

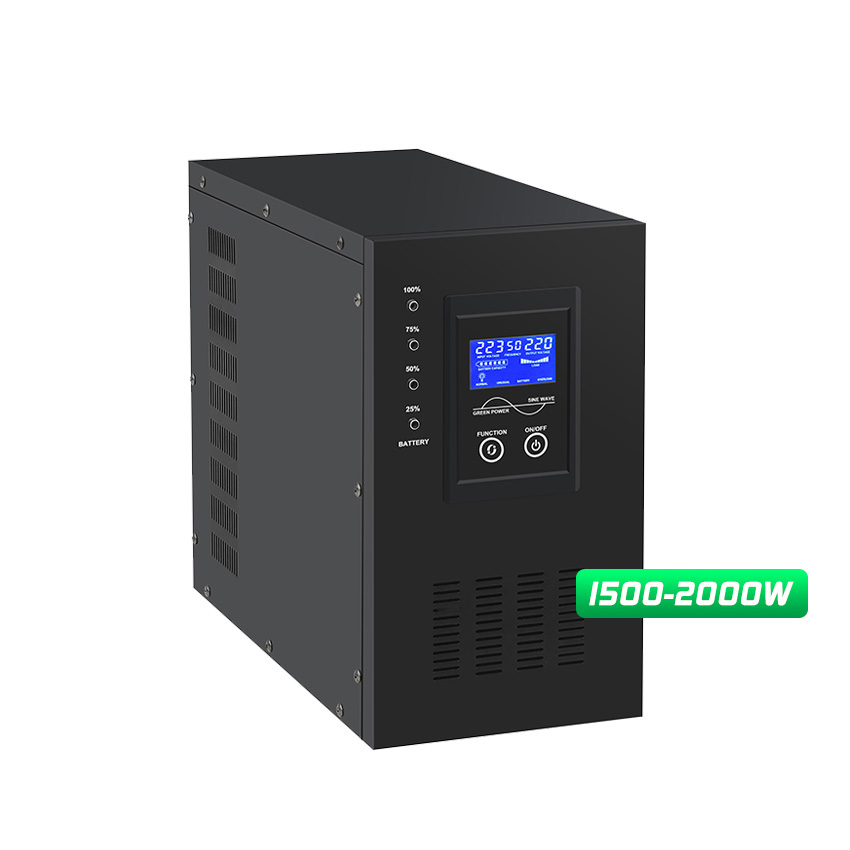

■ Hybrid Solar Power Inverter Specification
| Specification | |||
| Model NB-T | 15224/48 | 20248 | |
| Rated Power | 1500W | 2000W | |
| Peak Power（20ms) | 4500VA | 6000VA | |
| Start Motor | 1.5HP | 2HP | |
| Battery Voltage | 24/48VDC | 48VDC | |
| Size(L*W*Hmm) | 400*180*320 | ||
| Packing Size(L*W*Hmm) | 460*240*380 | ||
| N.W.(kg) | 18 | 21 | |
| G.W.(kg)（Carton Packing） | 19 | 22 | |
| Installation Method | Tower | ||
| Parameter | |||
| Input | DC Input Voltage Range | 10.5-15VDC（Single battery voltage） | |
| AC Input Voltage Range |
73VAC~138VAC(110VAC） / 83VAC~148VAC（120VAC） / 145VAC~275VAC（220VAC） /
155VAC~285VAC（230VAC） / 165VAC~295VAC（ 240VAC）
|
||
| AC Input Frequency Range | 45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz) | ||
| Max AC charging current | 6A~15A(Depending on the model） | ||
| AC charging voltage | LEAD battery：Charge Voltage :14.2V; Float Voltage:13.8V（Single battery voltage） | ||
| AC charging method | Three-stage (constant current, constant voltage, floating charge) | ||
| Output | Efficiency(Battery Mode) | ≥85% | |
| Output Voltage(Battery Mode) | 110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2% | ||
| Output Frequency(Battery Mode) | 50Hz±0.5 or 60Hz±0.5 | ||
| Output Wave(Battery Mode) | Pure Sine Wave | ||
| Efficiency(AC Mode) | >99% | ||
| Output Voltage(AC Mode) | Follow input | ||
| Output Frequency(AC Mode) | Tracking Automatically | ||
|
Output waveform distortion
(Battery Mode)
|
≤3%（Linear load） | ||
| No load loss(Battery Mode) | ≤2.5% rated power | ||
| No load loss(AC Mode) | ≤2% rated power（ charger does not work in AC mode） | ||
| No load loss(Energy saving Mode) | ≤10W | ||
| Battery Type | VRLA Battery | Charge Voltage :14.2V; Float Voltage:13.8V（Single battery voltage） | |
| Customize battery | Charge and discharge parameters of different types of batteries (such as lithium batteries, etc.) can be customized according to user requirements | ||
| Protection | Battery undervoltage alarm | Factory default: 11V（Single battery voltage） | |
| Battery undervoltage protection | Factory default: 10.5V（Single battery voltage） | ||
| Battery overvoltage alarm | Factory default: 15V（Single battery voltage） | ||
| Battery overvoltage protection | Factory default: ：17V（Single battery voltage） | ||
| Battery overvoltage recovery voltage | Factory default: 14.5V（Single battery voltage） | ||
| Overload power protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||
| Inverter output short circuit protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||
| Temperature protection | >90°C（Shut down output） | ||
| Alarm | A | Normal working condition, buzzer has no alarm sound | |
| B | Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection | ||
| C | When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal | ||
|
Inside Solar controller
(Optional)
|
Charging Mode | PWM | |
| Charging current | 10A~60A | ||
| PV Input Voltage Range | 30V-44V(24V System); 60V-88V(48V System) | ||
|
Max PV Input Voltage(Voc)
(At the lowest temperature)
|
50V(24V System); 100V(48V System) | ||
| PV Array Maximum Power |
24V System: 280W(10A)/560W(20A)/840W(30A)/1120W(40A)/1400W(50A)/1680W(60A);
48V System: 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A)
|
||
| Standby loss | ≤3W | ||
| Maximum conversion efficiency | >95% | ||
| Working Mode | Battery First/AC First/Saving Energy Mode | ||
| Transfer Time | ≤4ms | ||
| Display | LCD | ||
| Thermal method | Cooling fan in intelligent control | ||
| Communication | RS232(Optional) | ||
| Environment | Operating temperature | -10℃~40℃ | |
| Storage temperature | -15℃~60℃ | ||
| Noise | ≤55dB | ||
| Elevation | 2000m（More than derating） | ||
| Humidity | 0%~95% ,No condensation | ||
| Note: All specifications are subject to charge without prior notice | |||
