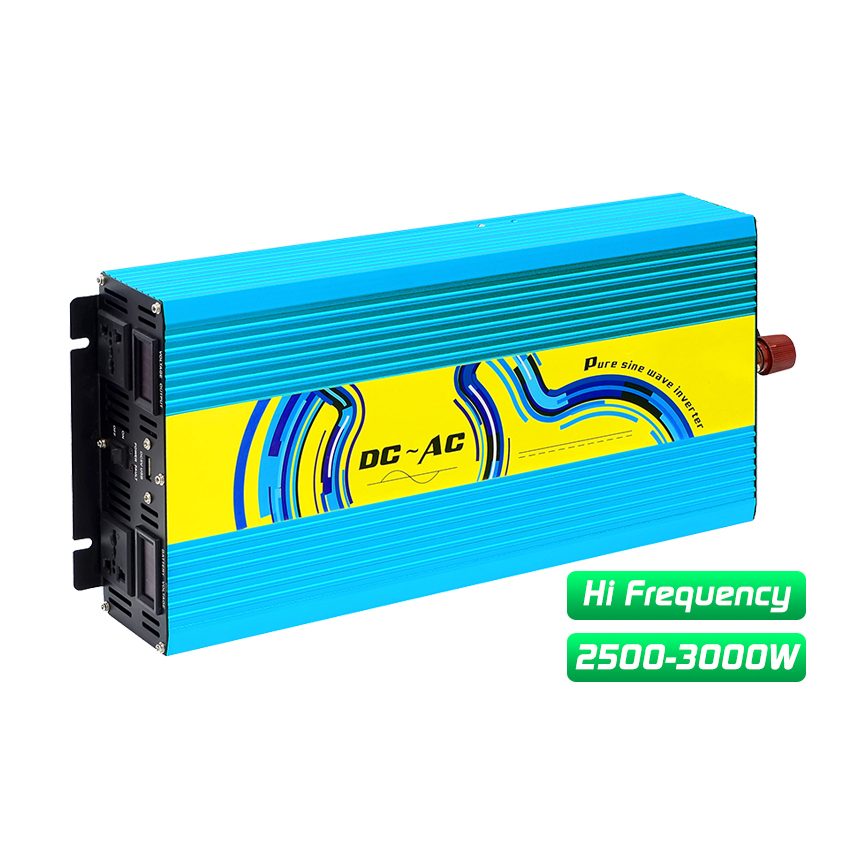

1. GP-C power inverter charger has soft-start function
2. DC/AC isolation
3. High frequency inverter pure sine wave output
4. Excellent load adaptability and stability
5. Strong startup ability, high efficiency conversion
6. Industrial universal socket designed for wide applicability
7. Small volume, light, safe to use, portable
8. Protection against over-heating,over-voltage,under-voltage,over load and short-circuits
■ Pure Sine Wave Inverter Specification
| Specification | |||
| Model : GP-C | 25224 | 30224 | |
| Rated Power | 2500W | 3000W | |
| Battery Voltage | DC 24V | ||
| Size (L*W*Hmm) | 470*222*90 | ||
| Package Size (L*W*Hmm) | 520*138*272 | ||
| N.W.(kg) | 7.2 | 7.2 | |
| G.W.(kg) (Carton Packing) | 8 | 8 | |
| Input | DC input voltage range | 10.5-15VDC (single battery voltage) | |
|
Voltage of the battery
switched on automatically
|
≥11V (single battery voltage) | ||
| Ouput | Output voltage (battery mode) | 220VAC±2% | |
| Output frequency (battery mode) | 50/60HZ±1% | ||
| Efficiency | ≥85% | ||
| Output wave form | Pure Sine Wave | ||
| Protection | Battery low voltage alarm | 9.5VDC±0.5V (single battery voltage) | |
| Battery over voltage protection | 15VDC±0.5V (single battery voltage) | ||
|
Ouput undervoltage protection
(Battery mode)
|
≤187VAC Turn off the output | ||
|
Output short circuit protection
(Battery mode)
|
machine shut off，battery cut off | ||
| Over power protection | 110% more than rated capacity | ||
| Temperature protection | ≥90℃ machine shut off | ||
| Protection instructions: Turn off the machine during protection and the machine will automatically return to normal after troubleshooting | |||

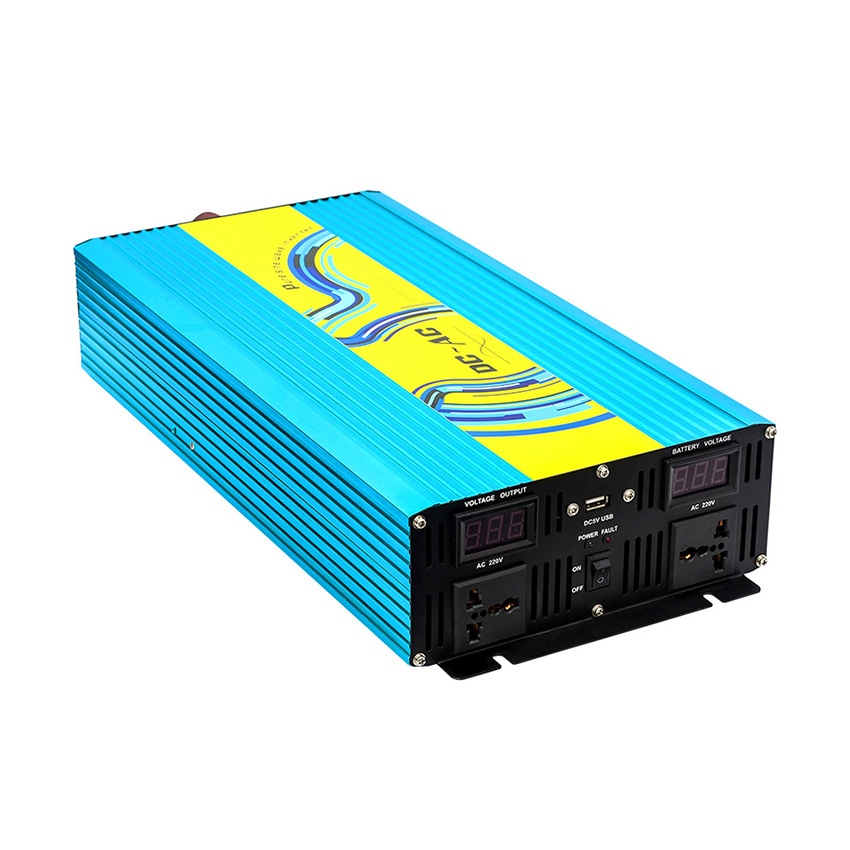

| Display | LED. Red light:battery fault, Green light: Normal electricity+Digital tube voltmeter | ||

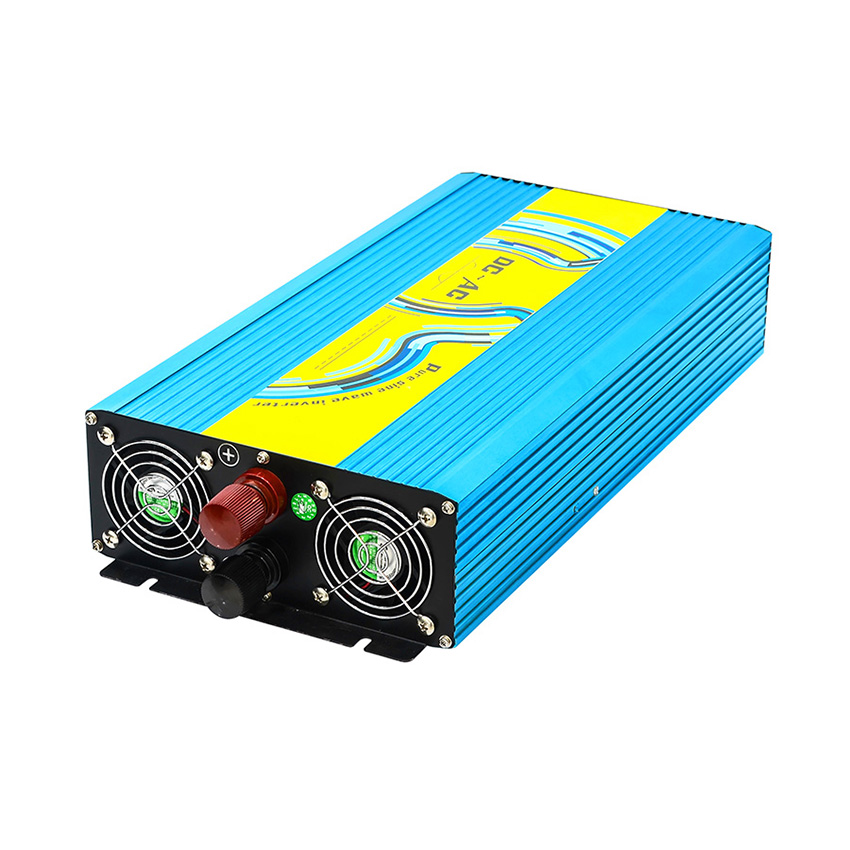

| Thermal method | Cooling fan in intelligent control | ||
| On-off | locking-type | ||
| Environment | Operating temperature | -10℃~+40℃ | |
| Storage temperature | -15℃~60℃ | ||
| Noise | ≤60dB | ||
| Highest altitude | 2000m（More than derating） | ||
| Relative humidity | 0%~95%(No condensation) | ||
| Note: All specifications are subject to change without prior notice | |||
