1. Soft-start function
2. DC/AC isolation
3. High frequency converter pure sine wave output
4. Excellent load adaptability and stability
5. Strong startup ability, high efficiency conversion

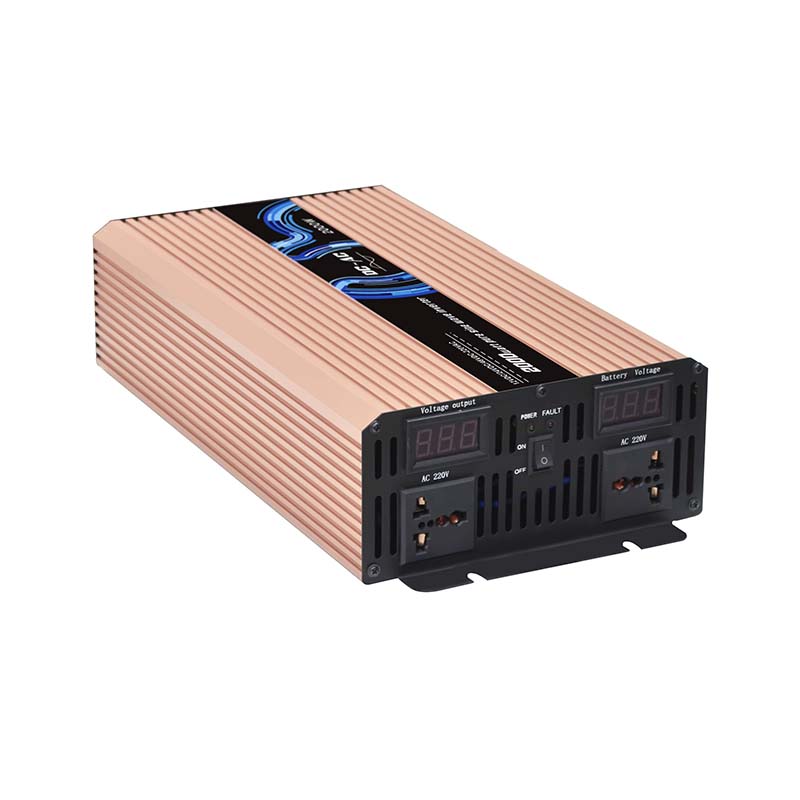

6. Industrial universal socket designed for wide applicability
7. Small volume, light, safe to use, portable
8. Protection against over-heating,over-voltage,under-voltage,over load and short-circuits
■ DC to High Frequency AC Converter Specification
Specification
Model : GP-C
15212/24
20212/24
Rated Power
1500W
2000W
Battery Voltage
DC 12V/24V
Size（L*W*Hmm）
407*198*90
Package Size（L*W*Hmm）
432*125*233
N.W.(kg)
4.2
4.5
G.W.(kg)（Carton Packing）
4.8
5
Input
DC input voltage range
10.5-15VDC (single battery voltage)
Voltage of the battery
switched on automatically
≥11V (single battery voltage)
Ouput
Output voltage (battery mode)
220VAC±2%
Output frequency (battery mode)
50/60HZ±1%
Efficiency
≥85%
Output wave form
Pure Sine Wave
Protection
Battery low voltage alarm
9.5VDC±0.5V (single battery voltage)
Battery over voltage protection
15VDC±0.5V (single battery voltage)
Ouput undervoltage protection
(Battery mode)
≤187VAC Turn off the output
Output short circuit protection
(Battery mode)
machine shut off，battery cut off
Over power protection
110% more than rated capacity
Temperature protection
≥90℃ machine shut off
Protection instructions: Turn off the machine during protection and the machine will automatically return to normal after troubleshooting
Display
LED. Red light:battery fault, Green light: Normal electricity+Digital tube voltmeter
Thermal method
Cooling fan in intelligent control
On-off
locking-type
Environment
Operating temperature
-10℃~+40℃
Storage temperature
-15℃~60℃
Noise
≤60dB
Highest altitude
2000m（More than derating）
Relative humidity
0%~95%(No condensation)
Note: All specifications are subject to change without prior notice
