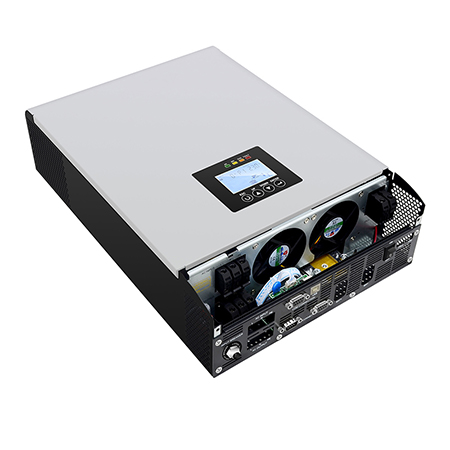

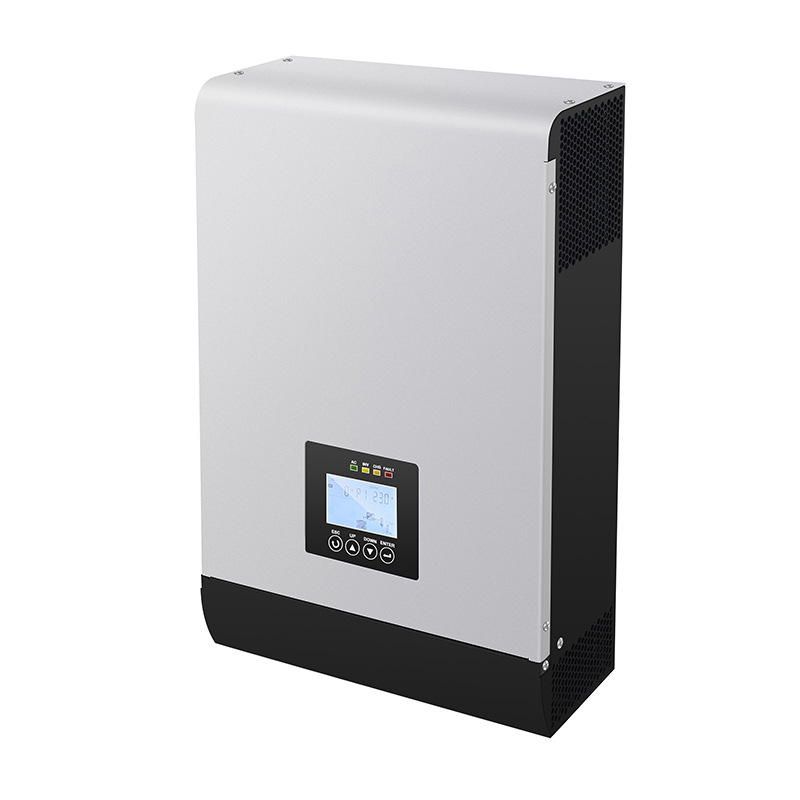

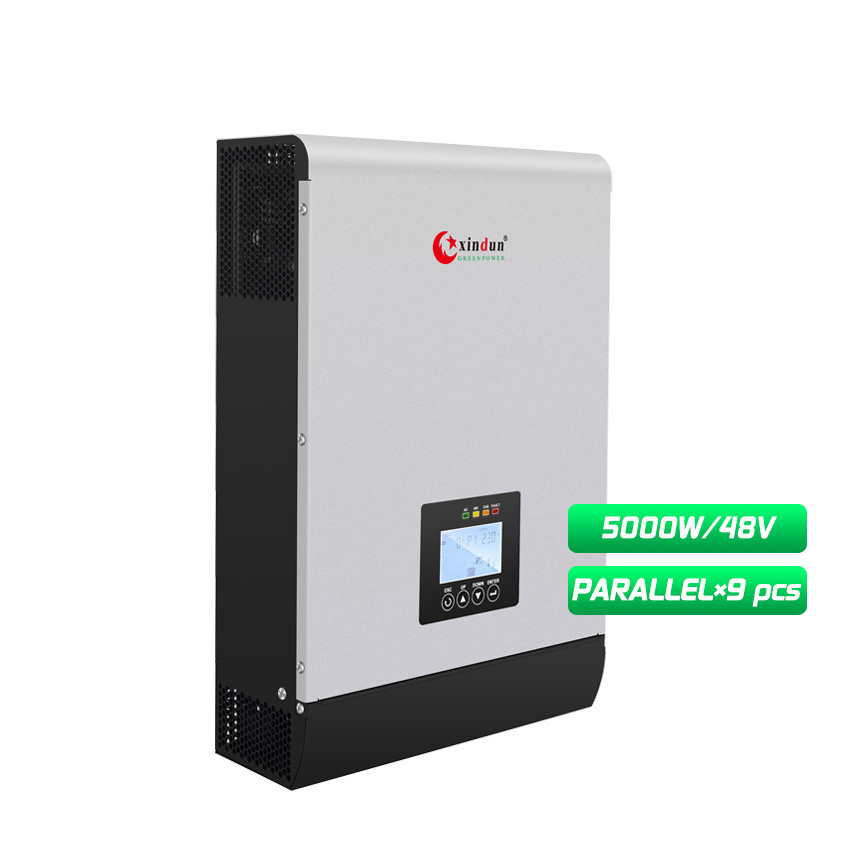

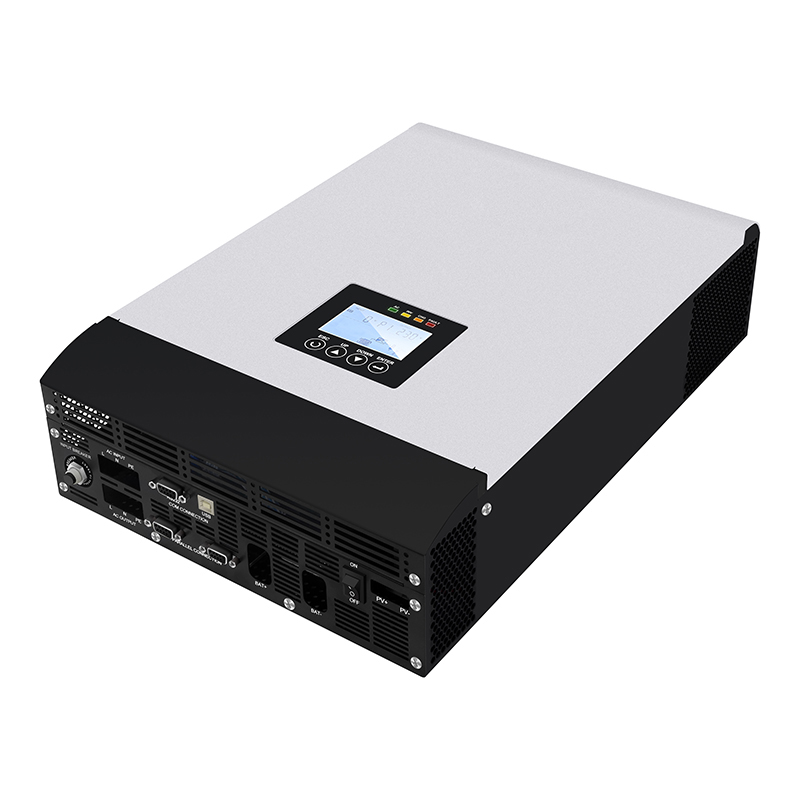

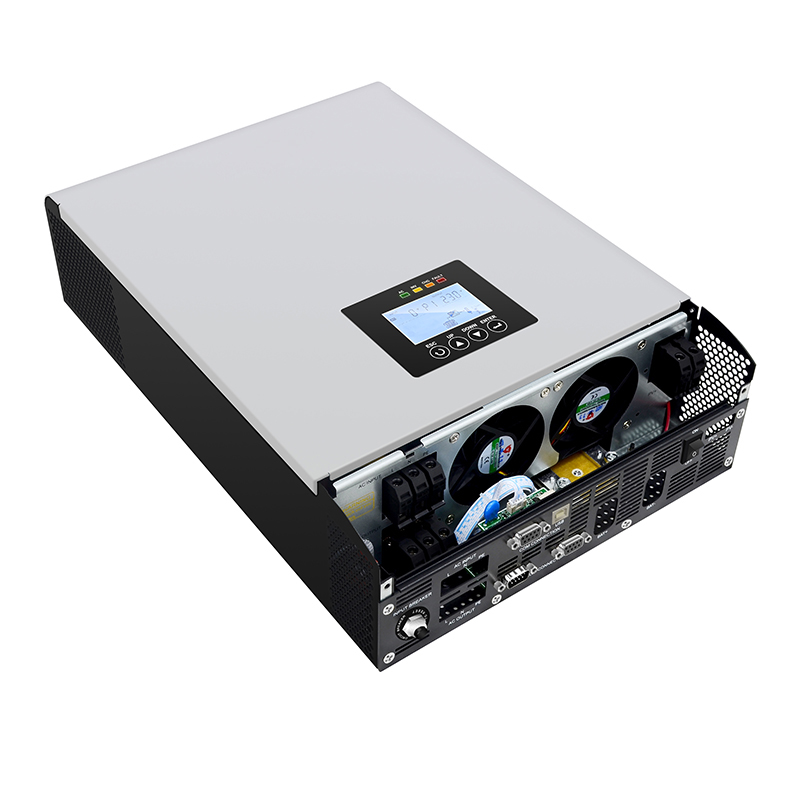

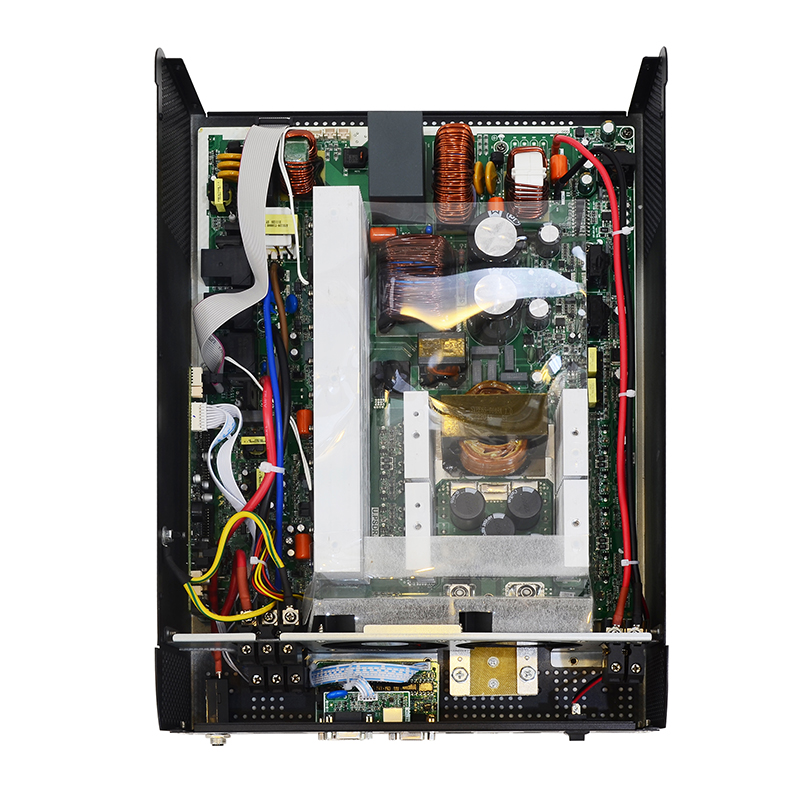

■ Solar PV Inverter Feature
1 Solar pv inverter parallel operation with up to 9 units.
2 Built-in MPPT solar controller ,solar input voltage up to 450V Maximum.
3 Combining solar energy, battery power source, AC power grid, generator to supply continuous power.
4 Support provide the power to the load without battery (Without inverter parallel operation).
5 Support USB, RS232 communication port, APP (WIFI/GPRS) optional.
6 High frequency pure sine wave design ,high efficiency with low no-load loss.
7 Perfect protection system: Battery low voltage, Battery over voltage, Overload power, Inverter output short circuit, Temperature protection
■ Solar PV Inverter Specification
| Specification | |||
| Model: | HP plus-502 | ||
| Rated Power | 5000W | ||
| Peak Power（20ms) | 15KVA | ||
| Battery Voltage | 48VDC | ||
| Product Size（L*W*Hmm） | 440x300x110 | ||
| Package Size（L*W*Hmm） | 515x375x205 | ||
| N.W（Kg） | 9.5 | ||
| G.W（Kg） | 10.5 | ||
| Installation Method | Wall-Mounted | ||
| PV | Charging Mode | MPPT | |
| Rated PV input voltage | 360VDC | ||
| MPPT tracking voltage range | 120V-430V | ||
| Max PV Input Voltage Voc | 450V | ||
| (At the lowest temperature) | |||
| PV Array Maximum Power | 5500W | ||
| MPPT tracking channels (input channels) | 1 | ||
| Input | DC Input Voltage Range | 42VDC-60VDC | |
| Rated AC input voltage | 208VAC/220VAC/230VAC/240VAC | ||
| AC Input Voltage Range | 90VAC~280VAC(Appliance mode)/170VAC~280VAC(UPS mode) | ||
| AC Input Frequency Range | 40Hz~70Hz(default) | ||
| Output | Output efficiency(Battery/PV Mode) | 94%（Peak value） | |
| Output Voltage(Battery/PV Mode) | 208VAC±2%/220VAC±2%/230VAC±2%/240VAC±2%(INV mode) | ||
| Output Frequency(Battery/PV Mode) | 50Hz/60Hz±0.1% | ||
| Output Wave(Battery/PV Mode) | Pure Sine Wave | ||
| Efficiency(AC Mode) | >99% | ||
| Output Voltage(AC Mode) | Follow input | ||
| Output Frequency(AC Mode) | Follow input | ||
| Output waveform distortion | ≤3%(Linear load) | ||
| Battery/PV Mode) | |||
| No load loss(Battery Mode) | ≤1% rated power | ||
| No load loss(AC Mode) | ≤0.5% rated power(charger does not work in AC mode) | ||
| Battery | Battery | VRLA Battery | Charge Voltage :56.4V; Float Voltage:54V |
| Type | Customize battery | Charging and discharging parameters of different types of batteries can be customized according to user requirements | |
| (charging and discharging parameters of different types of batteries can be set through the operation panel) | |||
| Max AC Charging Current | 60A | ||
| Max PV Charging Current | 80A | ||
| Maximum charging current (mains + PV) | 80A | ||
| Charging method | Three-stage (constant current, constant voltage, floating charge) | ||
| Working Mode | Mains priority/Solar priority/Battery priority(Can be set) | ||
| Transfer Time | ≤10ms | ||
| Communication(Optional) | RS232/USB/APP(WIFI monitoring or GPRS monitoring) | ||
| Environment | Operating temperature | -10℃~40℃ | |
| Storage temperature | -15℃~60℃ | ||
| Noise | ≤55dB | ||
| Elevation | 2000m(More than derating) | ||
| Humidity | 0%~95% (No condensation) | ||
